How to Set Up a Form for Data Sharing
Learn how to set up a form for data sharing in Smarter Drafter Pro.
To enable data sharing across documents, your form must be configured correctly. This includes applying section and field aliases, assigning roles, and following consistent naming conventions.
Instructions

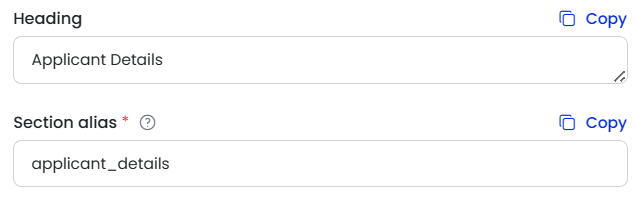

1. Apply a section alias to every section
- Section aliases are required and are automatically applied when you create a section.
- To review or edit a section alias, click into the Section Alias field when editing the section.
2. Apply field aliases to reusable fields
- Field aliases are optional but essential for data sharing. Only apply aliases to fields where the answers need to be reused in future documents.
- In the field editor, type your alias into the Field Alias field.
- As you type, a dynamic search will show existing aliases to help avoid duplicates.
Use specific and descriptive names, such as address_postal or purchase_price.
3. Assign roles to group related data
- Roles define who the data belongs to (e.g. Purchaser, Vendor) and help categorise fields for sharing.

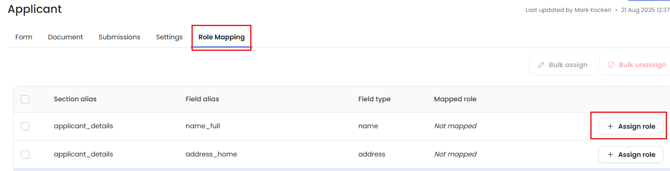

- In the section editor, go to the Role Mapping tab
- Click + Assign Role
- Select an existing role or type a new one, then click Create role
4. Leave general or changing fields untagged
- Don’t apply aliases or roles to fields that:
- Are too broad (e.g. amount)
- Are likely to change across documents (e.g. next court date)
NOTE: Leaving these fields untagged avoids incorrect or misleading data reuse.
5. Apply contact/user mapping where needed
-
If your form references contacts (e.g. applicants, lawyers), ensure contact mapping is in place so that these entries can be reused in other documents.
6. Follow your naming conventions
- Be consistent. Field aliases and roles must match exactly across forms for data to carry through. Variations like Child vs Children or phone_mobile vs mobile_phone will break the link.
7. Use the data sharing checklist before publishing
- Make sure:
- All sections have a section alias
- Reusable fields have field aliases
- Relevant fields have assigned roles
- General or non-reusable fields are left untagged
- Contact/user mapping is in place
- All naming follows internal conventions
Common Issues & Solutions
- Issue: Data isn’t appearing in future documents
- Solution: Check that the field alias and role used in each form are identical and not duplicated under different names.
- Issue: Duplicate aliases or roles in the system
- Solution: Go to Settings > Field Aliases or Settings > Form Roles to review, replace, or delete duplicates.
